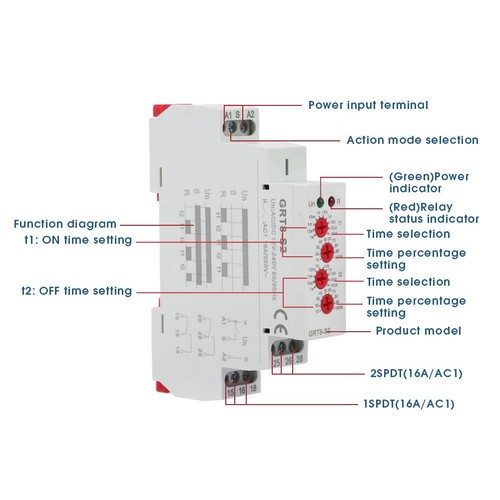

GRT8-S2 Minuterie de Cycle haute qualité Asymétrique ON/OFF Répétition Cycle Temps Relais AC/DC 12-240V

Feature:

1. Time setting for delay ON and OFF is separated so you can set different delay time.
2. Super wide delay time range, 0.1 second - 100 days settable (10 selections).
3. Switch different working modes by short-circuiting S-A1.
4. Relay working status is indicated by LED indicators.
5. With small volume, this relay can be mounted on 35mm DIN rail.

Specification:

Features:

1.Time setting for delay ON and OFF is separated so you can set different delay time.

2.Super wide delay time range, 0.1 second - 100 days settable (10 selections).

3.Switch different working modes by short-circuiting S-A1.

4.Relay working status is indicated by LED indicators.

5.With small volume, this relay can be mounted on 35mm DIN rail.

6.It is used for cyclic delay control occasions, providing periodic energizing, lighting control and heating control for electric circuit.

Specification:

Model: GRT8-S2

Rated supply voltage: AC/DC 12-240V(50-60Hz)

Power consumption: AC 0.09-3VA / DC 0.05-1.7W

Delay time range: 0.1s-100days, NO, NC

Setting method: knob

Setting accuracy: 10%

Repeated accuracy: 0.2%

Temperature fluctuation error: 0.05%/℃, at = 20℃

Output contact: 2 x SPDT, 2 x 16A/AC1

Minimum switching power: 500mW

Power indicator: Green LED

Output relay indication: Red LED

Mechanical life: 1x107

Electrical life: 1x106

Reset time: Max 200ms

Working temperature: -20℃~55℃

Storage temperature: -35℃~75℃

Mounting method: 35mm DIN rail

Protection grade: IP20

Wiring capability: 1x2.5mm2 or 2x1.5mm2

: 90*18*64mm / 3.54*0.71*2.52in

Package weight: Approx. 96g/3.4oz

Package List:

1 * Cycle Timer Relay

Note:

1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.

2.Please allow slight error due to manual measurement. Thanks for your understanding.
